Smaller and faster - What the future MacPro might look like part two

new macpro part two

When we posted Peter Zigich's first design thoughts on a new MacPro last year, we didn't realise how popular the article would be. He's back with round two of possible design thoughts and this time there is something new at the core.

Our first article on possible new MacPro designs based on a modular concept sparked off quite a debate. The second round of thoughts from Peter Zigich this time is based on the idea that Apple might switch to using power efficient ARM chips.

All speculation of course, but one thing we do know is that Tim Cook has committed to building a new pro machine. Let's hope that at WWDC or earlier, we will be treated to a new form factor MacPro rising up from the dry ice.

In the meantime we will let Peter continue with his thoughts...



There's been a lot of talk of Apple ditching Intel for ARM.

ARM Advantages:
  • optimised for performance/watt
  • power-efficient
  • cooler
  • fully scalable
  • smaller
  • cheaper
  • custom CPU design

 What does it mean?

  • significantly smaller enclosure
  • increase computing power by adding more CPUs
  • increase & tweak important performance (custom chip design)
  • cheaper CPUs - higher profit
  • smaller, lighter, quieter, cooler (less heat), "Greener" (Environment)



MacPro-size-comparason

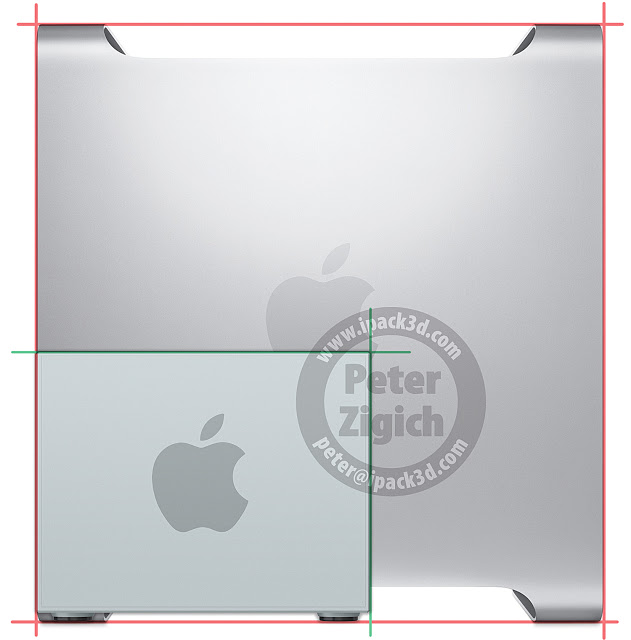

Size comparison with current MacPro
W x D x H - 230mm x 280mm x 220mm


arm001

Aluminum enclosure with removable side panel
3/4 View Perspective


arm003a
Front View
Slide up/down front door to access USB3 & Thunderbolt ports


arm005
Back View
USB3, Thunderbolt, Ethernet, Optical In & Out, Mic, Speaker, Power ports + 3 PCI slots


arm007
Folding Snap & Lock Handle


arm002
Removable side panel & Slide out Tray
4 HDD, 6 RAM slots, 3 PCI slots



Version 1a

Custom Apple designed ARM CPU  A10


2 CPUs on a Daughterboard Card.
Each Processor has 4 cores for a total 8 cores per Card.
4 Cards for a maximum of 8 CPUs (32 Cores).

ARM-CPU-001
CPU Daughterboard Card
2 Processors on Card 4 Cores each. Total of 8 Cores per Card


CPU001--cutout
Heat Sink Cross Section
Up to 4 Cards - total of 8 CPUs (32 Cores)



arm009
MacPro ARM CPU Workstation with Tray Out
Total of 8 CPUs (32 Cores) + 6 Memory Slots



Version 1b

How about Intel Inside?

CPU001

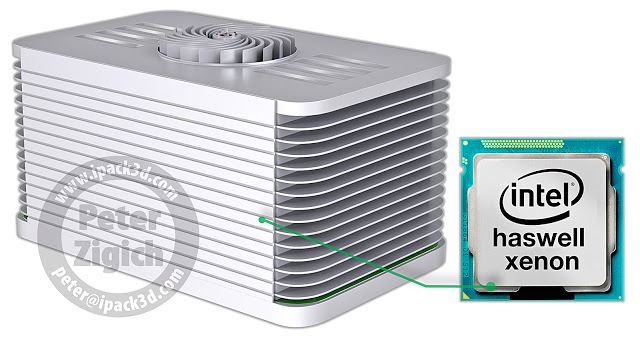

Maybe Intel can come up with super efficient Haswell Xenon CPU  2 Xenon CPUs can fit in the Heat Sink


It's impossible to ignore Intel. They are working on energy efficient CPUs.
Is it possible to put Haswell or Broadwell Xenons in such a small enclosure?
Liquid cooling, maybe. Intel will do their best to keep Apple happy.

Version 2

Custom Apple designed ARM CPU  A10


Combined CPU & RAM Module.
CPU Daughterboard Card comes with 2 CPUs and integrated 16GB RAM.
6 Cards for a maximum of 12 CPUs (48 Cores) and 96GB RAM

ARM-Processor-memory-001
Second Version of CPU Daughterboard Card
2 CPUs on Card (4 Cores each) with 16GB embedded RAM. Total of 8 Cores per Card


arm009
MacPro Workstation with 6 Daughterboard Card Slots
Total of 12 CPUs (48 Cores) + 96 GB RAM

Alternative aluminium enclosure

arm010

Darker aluminum enclosure
Anodized Aluminium Color (same as iPhone 5)


MacPro Cube


If Apple creates custom GPU (shorter, less heat), enclosure dimensions could shrink even more.

MacPro Cube with a footprint of a Mac Mini.  200mm x 200mm x 200mm Cube.
This will be ideal "Made in USA" Apple Computer.

Cube-3d
Apple Mac Pro Cube
with custom (smaller) GPU, 200mm Cube


Some interesting food for thought from Peter, let's hope that the new MacPro isn't far away. Many thanks to him for supplying us with the ideas & images.
